Geom for calibration plot with confidence intervals

geom_calibration() creates calibration plots to assess the agreement between predicted probabilities and observed binary outcomes. It supports three methods: binning ("breaks"), logistic regression ("logistic"), and windowed ("windowed"), all computed with check_calibration().

Usage

geom_calibration(
  mapping = NULL,
  data = NULL,
  method = "breaks",
  bins = 10,
  binning_method = "equal_width",
  smooth = TRUE,
  conf_level = 0.95,
  window_size = 0.1,
  step_size = window_size/2,
  treatment_level = NULL,
  k = 10,
  show_ribbon = TRUE,
  show_points = TRUE,
  position = "identity",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE,
  ...
)

Arguments

mapping: Aesthetic mapping (must supply estimate and truth if not inherited). estimate should be propensity scores/predicted probabilities, truth should be treatment variable.
data: Data frame or tibble; if NULL, uses ggplot default.
method: Character; calibration method - "breaks", "logistic", or "windowed".
bins: Integer >1; number of bins for the "breaks" method.
binning_method: "equal_width" or "quantile" for bin creation (breaks method only).
smooth: Logical; for "logistic" method, use GAM smoothing if available.
conf_level: Numeric in (0,1); confidence level for CIs (default = 0.95).
window_size: Numeric; size of each window for "windowed" method.
step_size: Numeric; distance between window centers for "windowed" method.
treatment_level: The level of the outcome variable to consider as the treatment/event. If NULL (default), uses the last level for factors or the maximum value for numeric variables.
k: Integer; the basis dimension for GAM smoothing when method = "logistic" and smooth = TRUE. Default is 10.
show_ribbon: Logical; show confidence interval ribbon.
show_points: Logical; show points (only for "breaks" and "windowed" methods).
position: Position adjustment.
na.rm: If FALSE, the default, missing values are removed with a warning. If TRUE, missing values are silently removed.
show.legend: Logical. Should this layer be included in the legends? NA, the default, includes if any aesthetics are mapped.
inherit.aes: If FALSE, overrides the default aesthetics, rather than combining with them.
...: Other arguments passed on to layer().

Value

A ggplot2 layer or list of layers

Details

This geom provides a ggplot2 layer for creating calibration plots with confidence intervals. The geom automatically computes calibration statistics using the specified method and renders appropriate geometric elements (points, lines, ribbons) to visualize the relationship between predicted and observed rates.

The three methods offer different approaches to calibration assessment:

"breaks": Discrete binning approach, useful for understanding calibration across prediction ranges with sufficient sample sizes
"logistic": Regression-based approach that can include smoothing for continuous calibration curves
"windowed": Sliding window approach providing smooth curves without requiring additional packages

Examples

library(ggplot2)

# Basic calibration plot using nhefs_weights dataset
# .fitted contains propensity scores, qsmk is the treatment variable
ggplot(nhefs_weights, aes(estimate = .fitted, truth = qsmk)) +
  geom_calibration() +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed") +
  labs(x = "Propensity Score", y = "Observed Treatment Rate")
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.

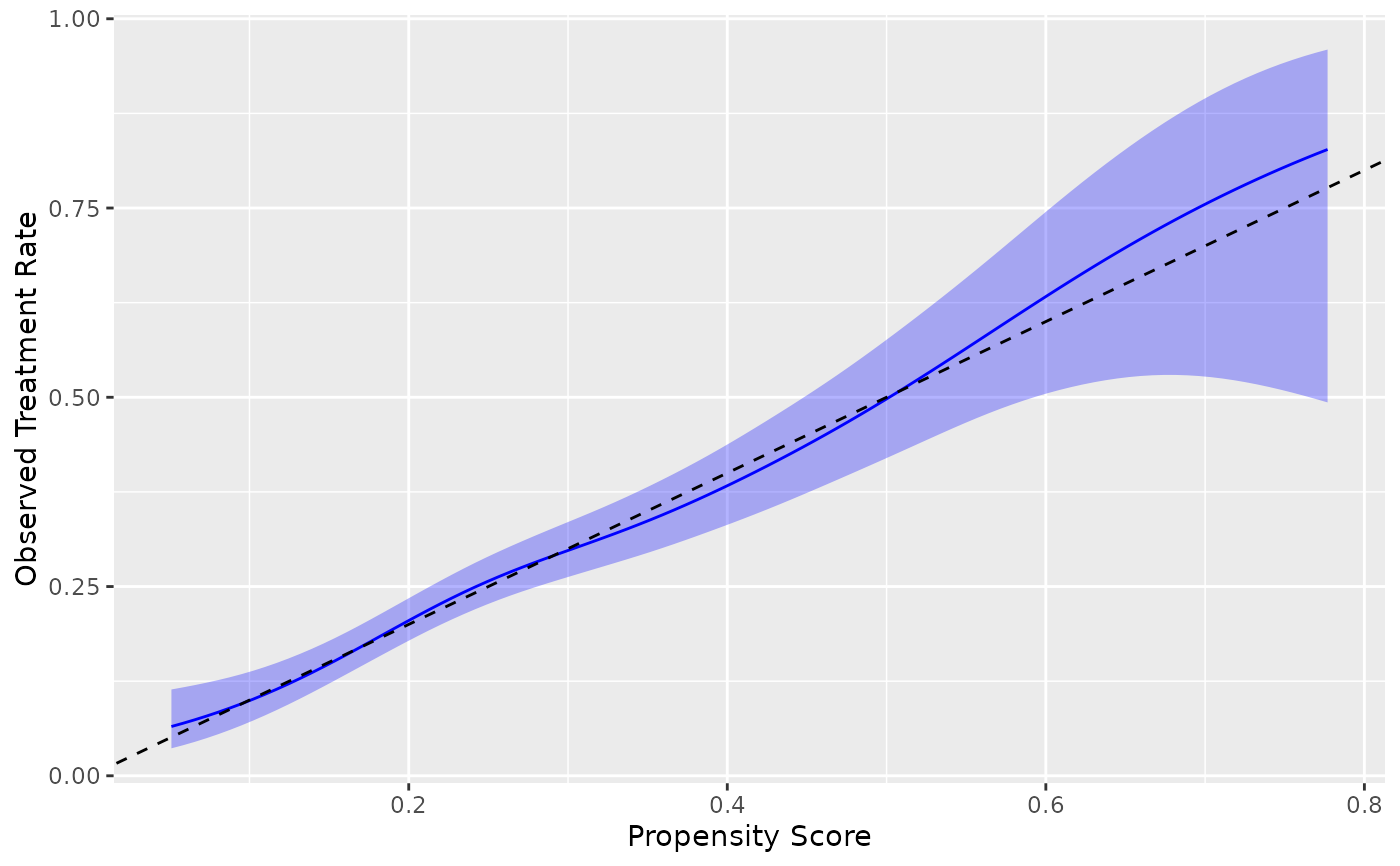

# Using different methods
ggplot(nhefs_weights, aes(estimate = .fitted, truth = qsmk)) +
  geom_calibration(method = "logistic") +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed") +
  labs(x = "Propensity Score", y = "Observed Treatment Rate")

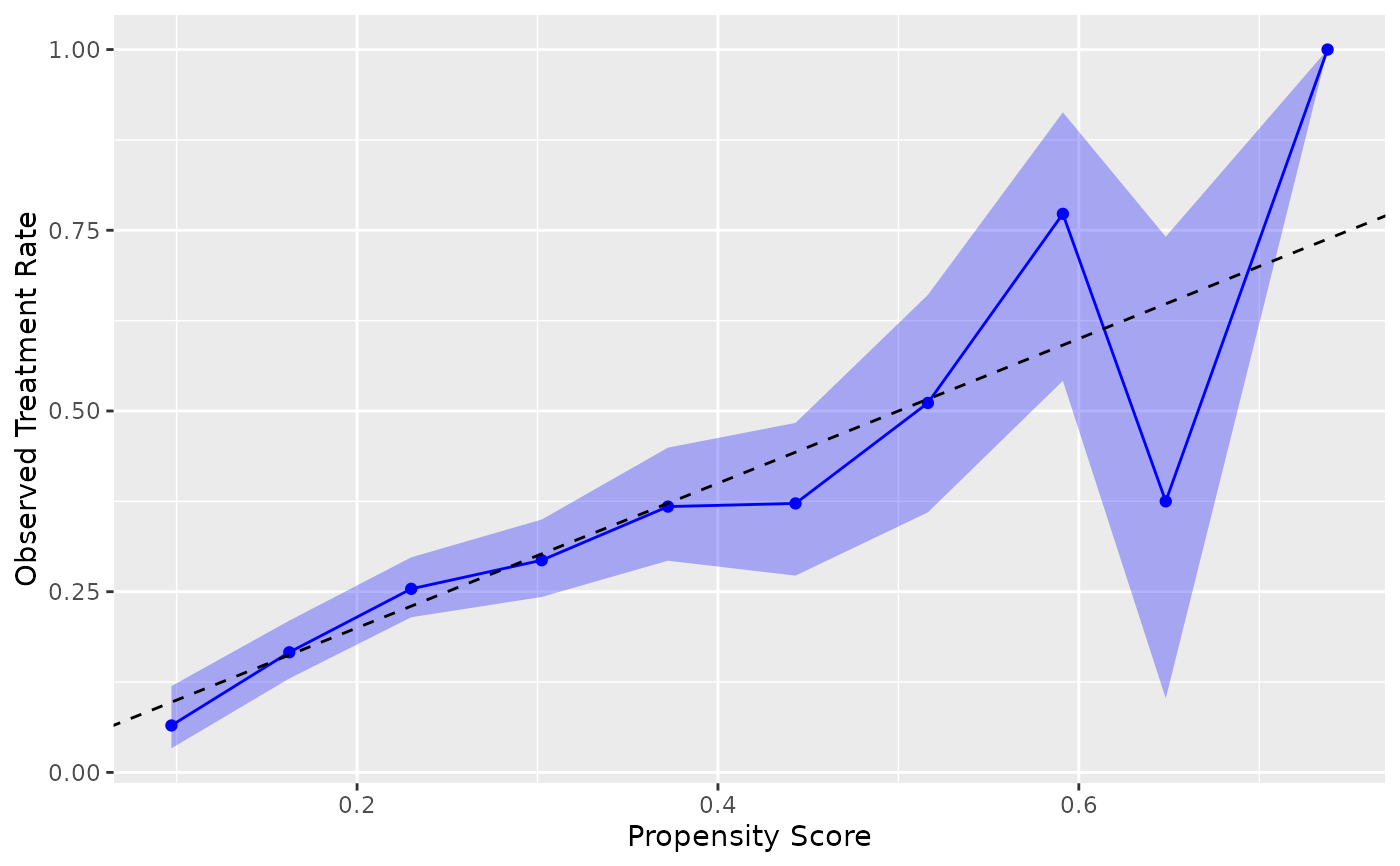

# Specify treatment level explicitly
ggplot(nhefs_weights, aes(estimate = .fitted, truth = qsmk)) +
  geom_calibration(treatment_level = "1") +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed") +
  labs(x = "Propensity Score", y = "Observed Treatment Rate")
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in bins 9, 10 (n = 8, 3).
#> Confidence intervals may be unreliable. Consider using fewer bins or a
#> different calibration method.

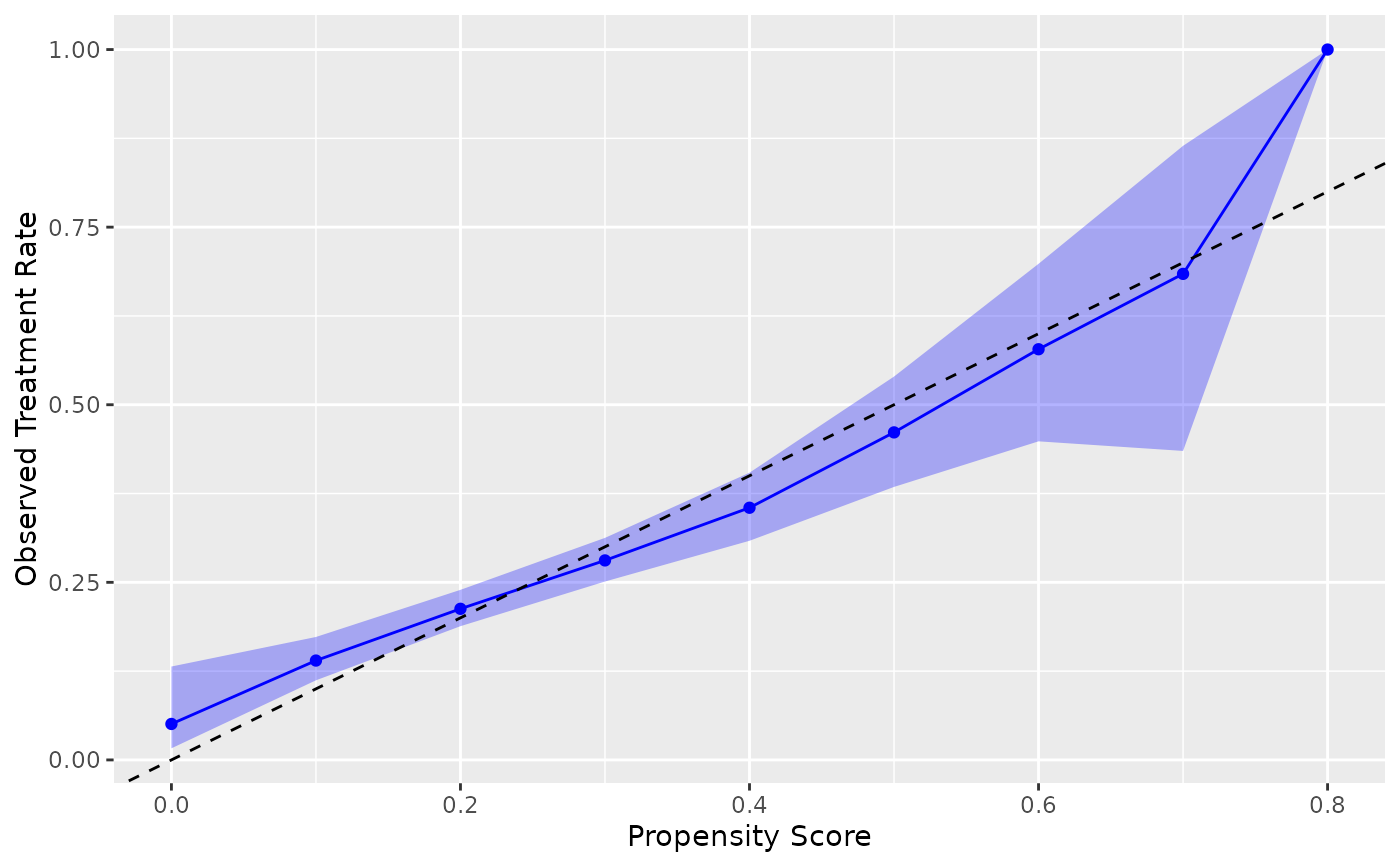

# Windowed method with custom parameters
ggplot(nhefs_weights, aes(estimate = .fitted, truth = qsmk)) +
  geom_calibration(method = "windowed", window_size = 0.2, step_size = 0.1) +
  geom_abline(intercept = 0, slope = 1, linetype = "dashed") +
  labs(x = "Propensity Score", y = "Observed Treatment Rate")
#> Warning: Small sample sizes or extreme proportions detected in windows centered at 0.8
#> (n = 3). Confidence intervals may be unreliable. Consider using a larger window
#> size or a different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in windows centered at 0.8
#> (n = 3). Confidence intervals may be unreliable. Consider using a larger window
#> size or a different calibration method.
#> Warning: Small sample sizes or extreme proportions detected in windows centered at 0.8
#> (n = 3). Confidence intervals may be unreliable. Consider using a larger window
#> size or a different calibration method.
