Quickly create a DAGs with common structures of bias

Source: R/quick_plots.R
quick_plot.Rd

base functions create an object of class dagitty; ggdag_* functions are wrappers that also call ggdag() on the dagitty object.

Usage

m_bias(
  x = NULL,
  y = NULL,
  a = NULL,
  b = NULL,
  m = NULL,
  x_y_associated = FALSE
)

butterfly_bias(
  x = NULL,
  y = NULL,
  a = NULL,
  b = NULL,
  m = NULL,
  x_y_associated = FALSE
)

confounder_triangle(x = NULL, y = NULL, z = NULL, x_y_associated = FALSE)

collider_triangle(x = NULL, y = NULL, m = NULL, x_y_associated = FALSE)

mediation_triangle(x = NULL, y = NULL, m = NULL, x_y_associated = FALSE)

quartet_collider(x = NULL, y = NULL, z = NULL, x_y_associated = TRUE)

quartet_confounder(x = NULL, y = NULL, z = NULL, x_y_associated = TRUE)

quartet_mediator(x = NULL, y = NULL, z = NULL, x_y_associated = FALSE)

quartet_m_bias(
  x = NULL,
  y = NULL,
  z = NULL,
  u1 = NULL,
  u2 = NULL,
  x_y_associated = TRUE
)

quartet_time_collider(
  x0 = NULL,
  x1 = NULL,
  x2 = NULL,
  x3 = NULL,
  y1 = NULL,
  y2 = NULL,
  y3 = NULL,
  z1 = NULL,
  z2 = NULL,
  z3 = NULL
)

ggdag_m_bias(
  x = NULL,
  y = NULL,
  a = NULL,
  b = NULL,
  m = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL,
  node = deprecated(),
  stylized = deprecated()
)

ggdag_butterfly_bias(
  x = NULL,
  y = NULL,
  a = NULL,
  b = NULL,
  m = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL,
  node = deprecated(),
  stylized = deprecated()
)

ggdag_confounder_triangle(
  x = NULL,
  y = NULL,
  z = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL,
  node = deprecated(),
  stylized = deprecated()
)

ggdag_collider_triangle(
  x = NULL,
  y = NULL,
  m = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL,
  node = deprecated(),
  stylized = deprecated()
)

ggdag_mediation_triangle(
  x = NULL,
  y = NULL,
  m = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL,
  node = deprecated(),
  stylized = deprecated()
)

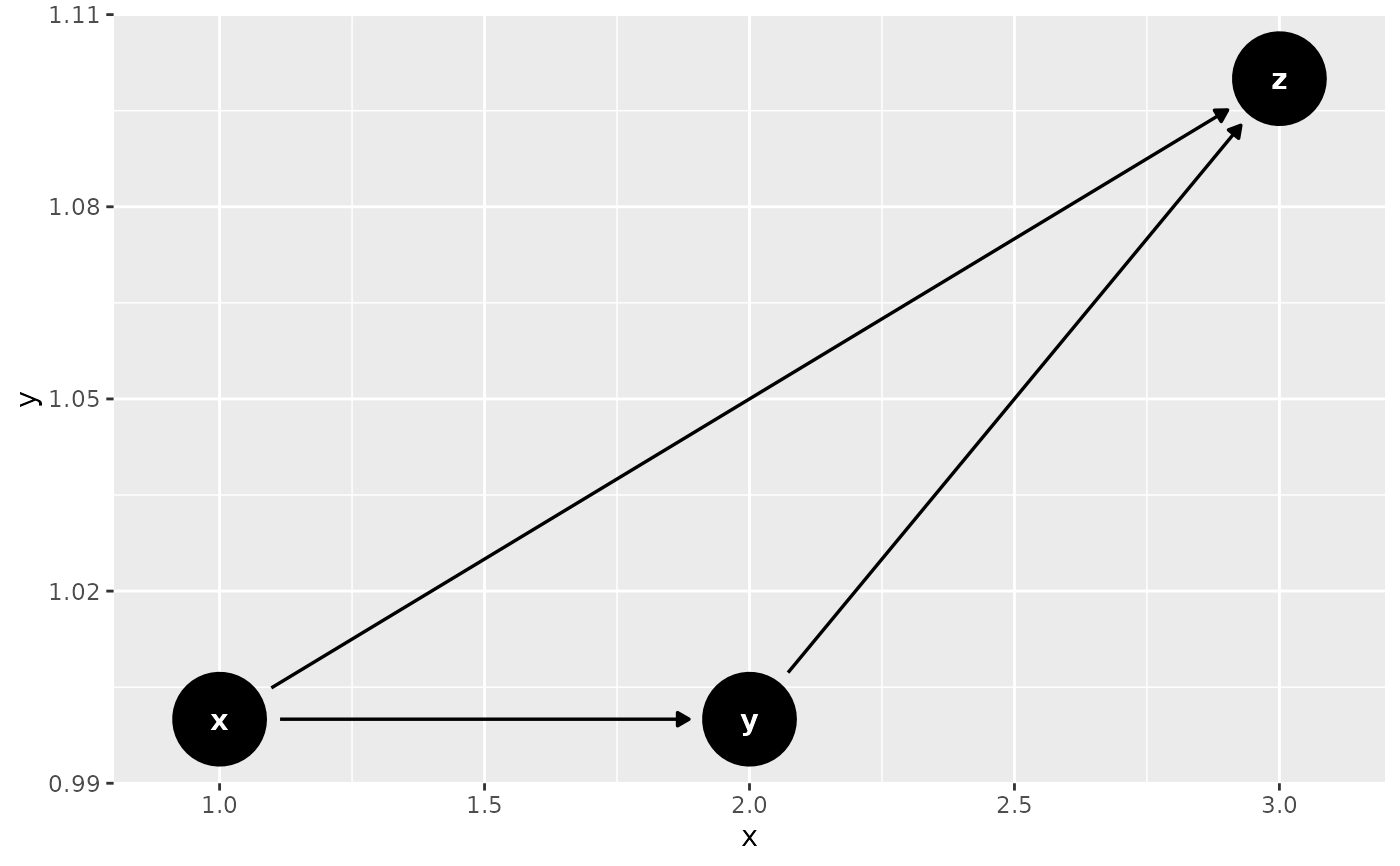

ggdag_quartet_collider(
  x = NULL,
  y = NULL,
  z = NULL,
  x_y_associated = TRUE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL
)

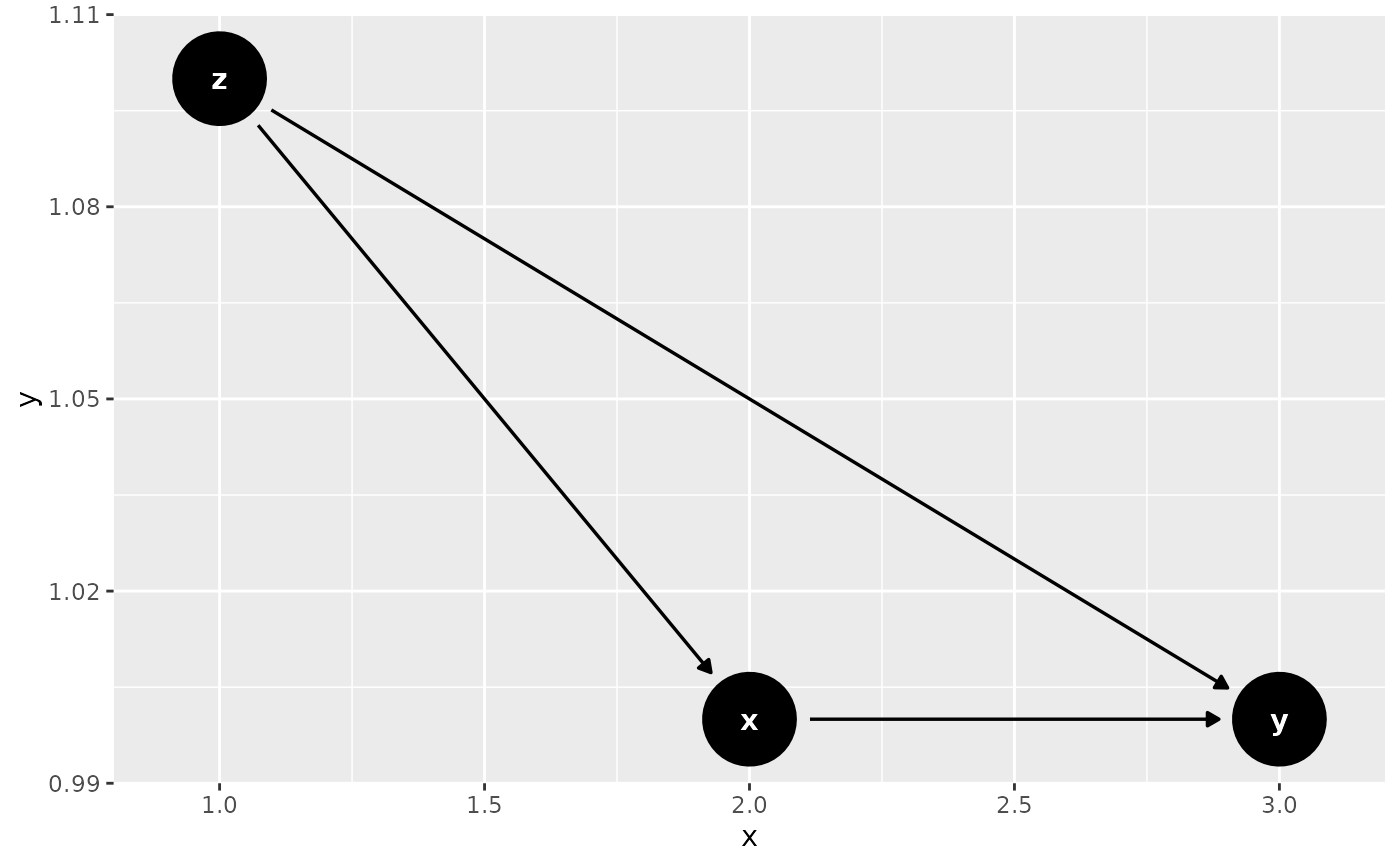

ggdag_quartet_confounder(
  x = NULL,
  y = NULL,
  z = NULL,
  x_y_associated = TRUE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL
)

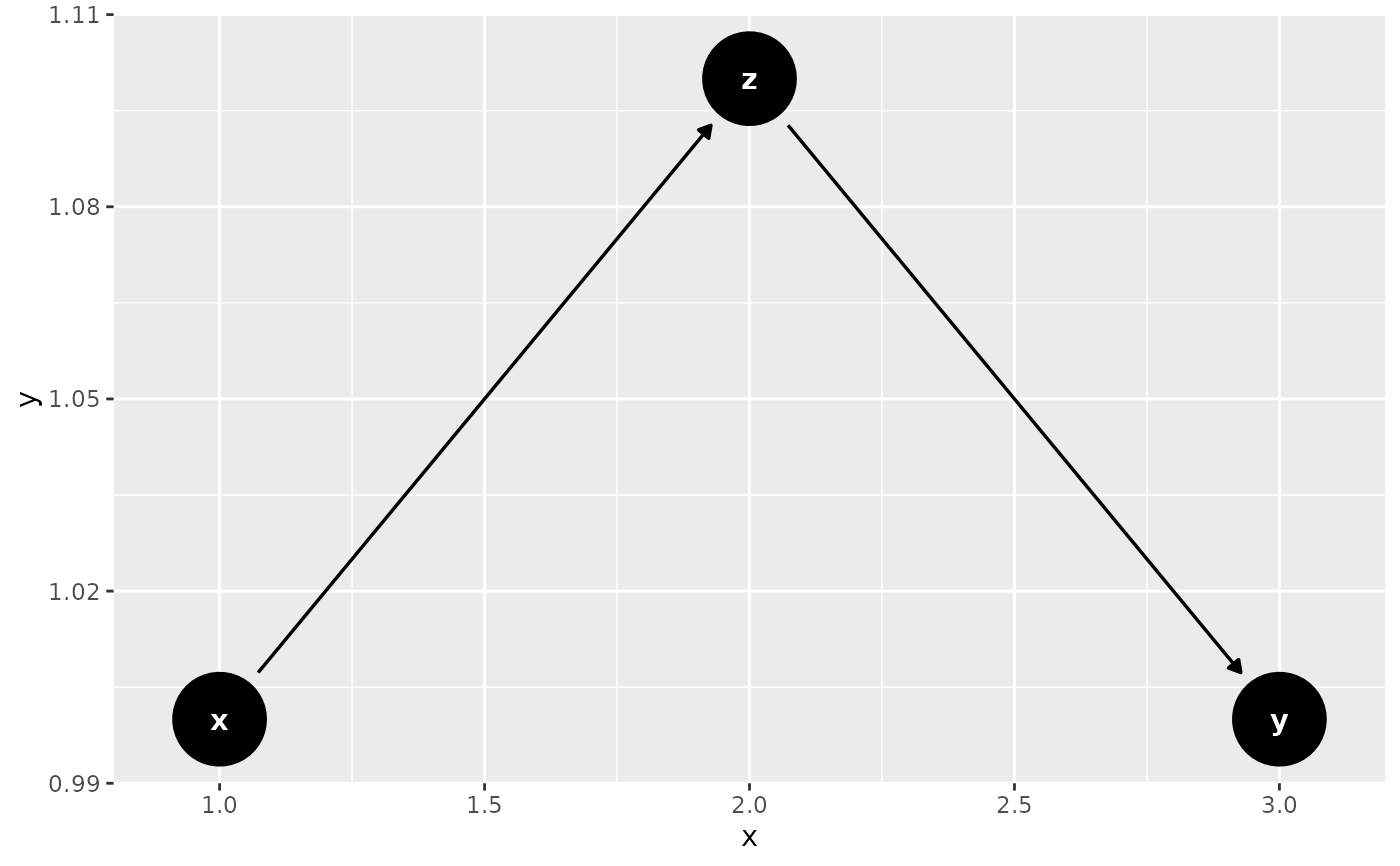

ggdag_quartet_mediator(
  x = NULL,
  y = NULL,
  z = NULL,
  x_y_associated = FALSE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL
)

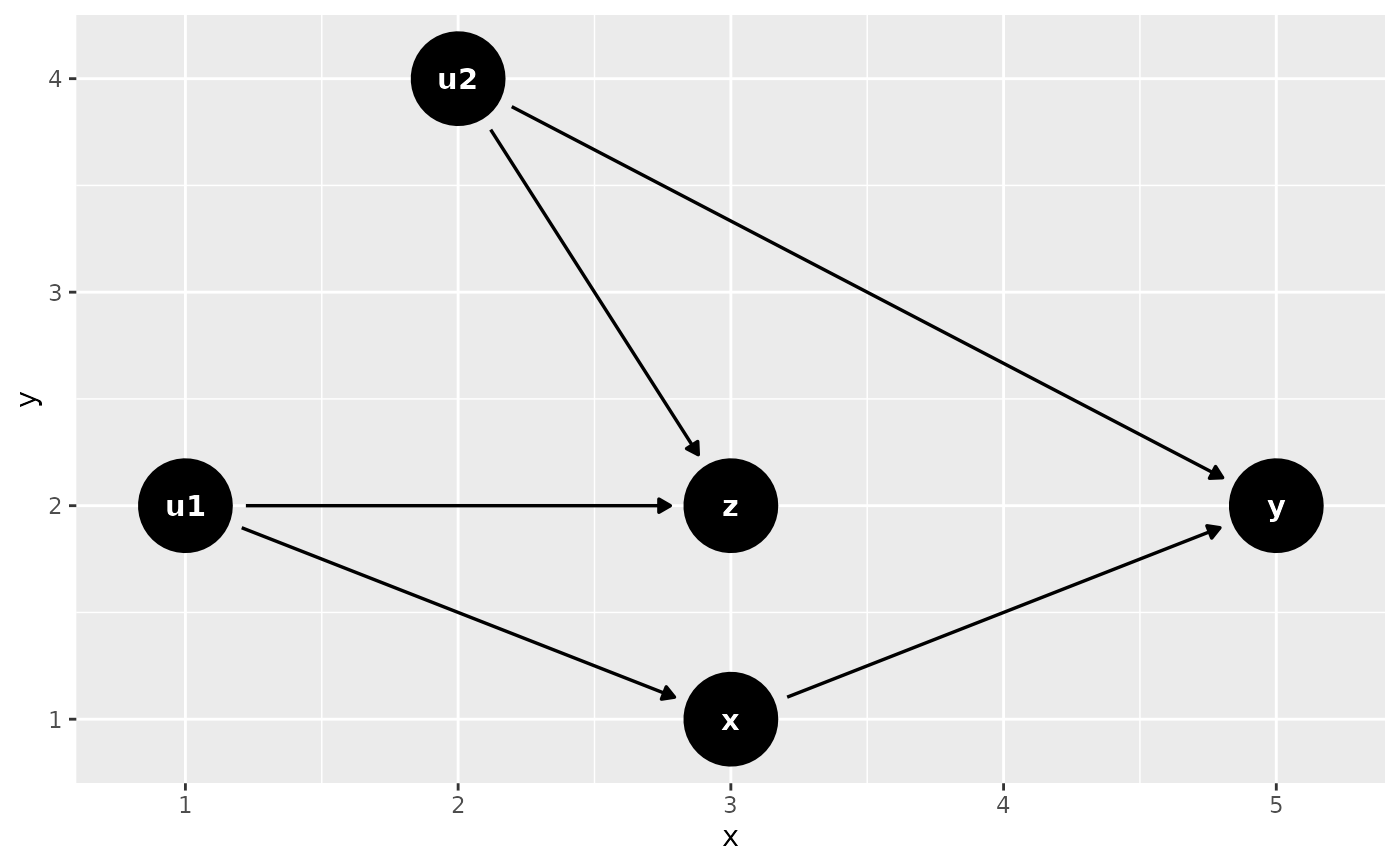

ggdag_quartet_m_bias(
  x = NULL,
  y = NULL,
  z = NULL,
  u1 = NULL,
  u2 = NULL,
  x_y_associated = TRUE,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL
)

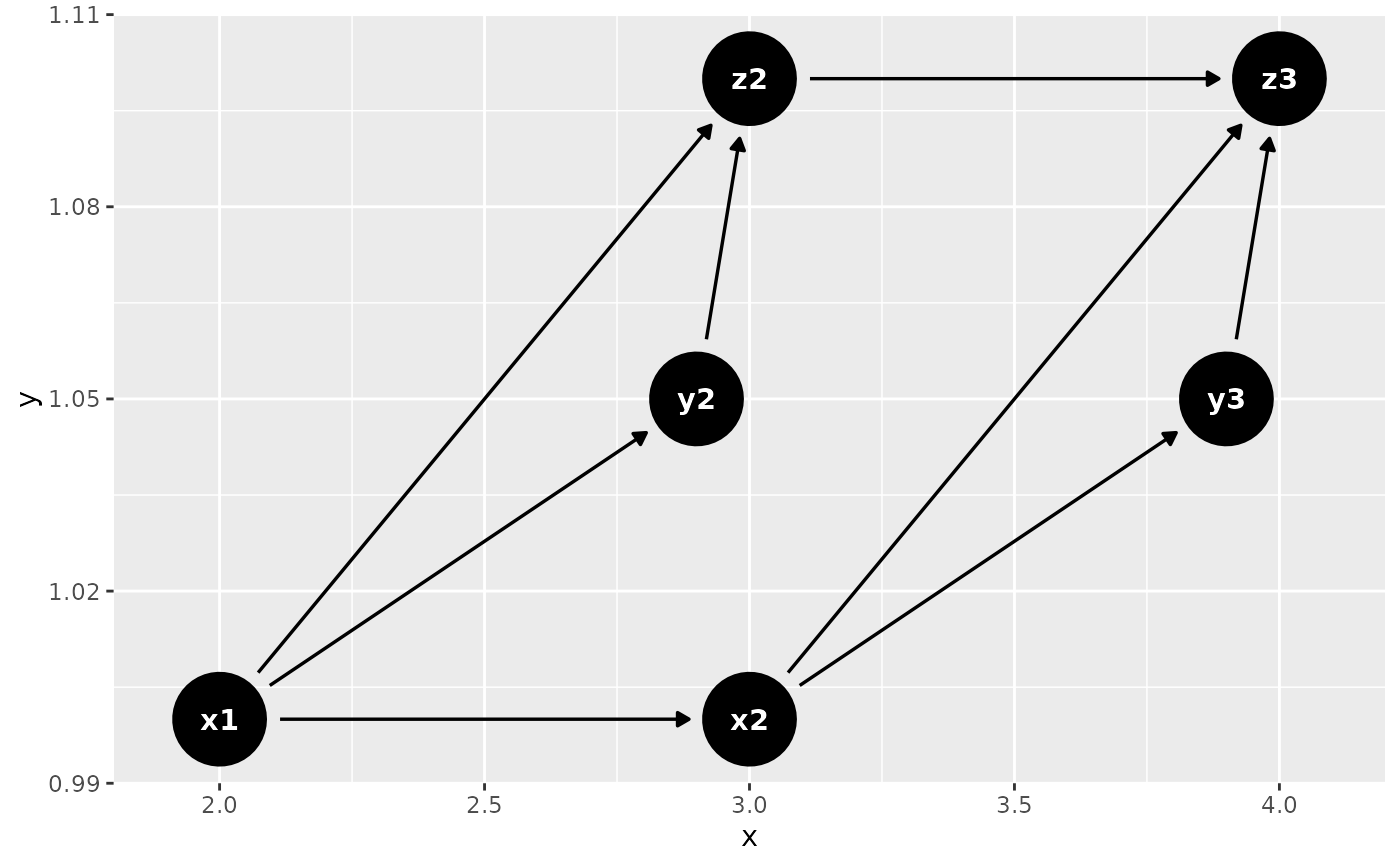

ggdag_quartet_time_collider(
  x0 = NULL,
  x1 = NULL,
  x2 = NULL,
  x3 = NULL,
  y1 = NULL,
  y2 = NULL,
  y3 = NULL,
  z1 = NULL,
  z2 = NULL,
  z3 = NULL,
  size = 1,
  edge_type = ggdag_option("edge_type", "link_arc"),
  node_size = ggdag_option("node_size", 16),
  text_size = ggdag_option("text_size", 3.88),
  label_size = ggdag_option("label_size", text_size),
  text_col = ggdag_option("text_col", "white"),
  label_col = ggdag_option("label_col", "black"),
  edge_width = ggdag_option("edge_width", 0.6),
  edge_cap = ggdag_option("edge_cap", 8),
  arrow_length = ggdag_option("arrow_length", 5),
  use_edges = ggdag_option("use_edges", TRUE),
  use_nodes = ggdag_option("use_nodes", TRUE),
  use_stylized = ggdag_option("use_stylized", FALSE),
  use_text = ggdag_option("use_text", TRUE),
  use_labels = ggdag_option("use_labels", FALSE),
  label_geom = ggdag_option("label_geom", geom_dag_label_repel),
  edge_engine = ggdag_option("edge_engine", "ggraph"),
  unified_legend = TRUE,
  key_glyph = NULL,
  text = NULL,
  label = NULL
)

Arguments

x, y, a, b, m, z

Character vector. Optional label. Default is NULL

x_y_associated

Logical. Are x and y associated? Default is FALSE for the bias-structure DAGs and for quartet_mediator(), and TRUE for quartet_collider(), quartet_confounder(), and quartet_m_bias(), whose datasets have x and y associated by construction. quartet_time_collider() has no such argument.

u1, u2

Character vector. Optional label for unmeasured nodes, used in quartet_m_bias(). Default is NULL

x0, x1, x2, x3, y1, y2, y3, z1, z2, z3

Character vector. Optional labels for time-indexed nodes, used in quartet_time_collider(). Default is NULL. The DAG holds six nodes, x1, x2, y2, y3, z2, and z3; x0, x3, y1, and z1 name none of them and are accepted only so that code written against the older signature still runs. Labels given for them are ignored.

size

A numeric value scaling the size of all elements in the DAG. This allows you to change the scale of the DAG without changing the proportions.

edge_type

The type of edge, one of "link_arc", "link", "arc", "diagonal".

node_size

The size of the nodes.

text_size

The size of the text.

label_size

The size of the labels.

text_col

The color of the text.

label_col

The color of the labels.

edge_width

The width of the edges.

edge_cap

The size of edge caps (the distance between the arrowheads and the node borders).

arrow_length

The length of arrows on edges.

use_edges

A logical value. Include a geom_dag_edges*() function? If TRUE, which is determined by edge_type.

use_nodes

A logical value. Include geom_dag_point()?

use_stylized

A logical value. Include geom_dag_node()?

use_text

A logical value. Include geom_dag_text()?

use_labels

A logical value. Include a label geom? The specific geom used is controlled by label_geom.

label_geom

A geom function to use for drawing labels when use_labels = TRUE. Default is geom_dag_label_repel. Other options include geom_dag_label, geom_dag_text_repel, geom_dag_label_repel2, and geom_dag_text_repel2.

edge_engine

The engine used to draw edges. Either "ggraph" (default) or "ggarrow". When "ggarrow", edges are drawn using ggarrow geoms, which support additional customization via the arrow_head, arrow_fins, arrow_mid, and curvature global options (see ggdag_options_set()).

unified_legend

A logical value. When TRUE and both use_edges and use_nodes are TRUE, creates a unified legend entry showing both nodes and edges in a single key, and hides the separate edge legend. This creates a single, more compact legend. Default is TRUE.

key_glyph

A function to use for drawing the legend key glyph for nodes. If NULL (the default), the glyph is chosen automatically based on the unified_legend setting. When provided, this overrides the automatic selection. Common options include draw_key_dag_point, draw_key_dag_combined, and draw_key_dag_collider.

text

The bare name of a column to use for geom_dag_text(). If use_text = TRUE, the default is to use name.

label

The bare name of a column to use for labels. If use_labels = TRUE, the default is to use label.

node

Deprecated.

stylized

Deprecated.

Value

a DAG of class dagitty or a ggplot

Details

The quartet_* functions create DAGs that represent the causal quartet, which are four example datasets with identical statistical properties but different causal structures. These are inspired by Anscombe's quartet and demonstrate that statistical summaries alone cannot determine causal relationships. See Causal Inference in R

The four structures represent different relationships between exposure (x), outcome (y), and a covariate (z):

  • Collider: z is caused by both x and y (should not adjust for z)

  • Confounder: z causes both x and y (must adjust for z)

  • Mediator: z is on the causal path from x to y (adjust for direct effect only)

  • M-bias: z is a collider with unmeasured confounders u1 and u2 (should not adjust for z)

The time-varying collider (quartet_time_collider()) demonstrates how time-ordering can help identify causal relationships when variables are measured at multiple time points.

References

D'Agostino McGowan L, Gerke T, Barrett M (2023). "Causal inference is not just a statistics problem." Journal of Statistics and Data Science Education, 32(1), 1-4. doi:10.1080/26939169.2023.2276446

Examples

m_bias() |> ggdag_adjust("m")

ggdag_confounder_triangle()


# Causal Quartets
ggdag_quartet_collider()

ggdag_quartet_confounder()

ggdag_quartet_mediator()

ggdag_quartet_m_bias()


# Time-varying collider
ggdag_quartet_time_collider()
